Fiber Inline Phase Shifter Non-Fiber Stretch (15 to 80π)

Fiber Inline Phase Shifter Non-Fiber Stretch (15 to 80π)
Features:
  • Up to 80π
  • High Reliability
  • High Repeatability
  • 400nm to 2600nm
  • High Polarization Extinction 29 dB
  • All Fiber Type
  • Bidirectional
  • Low Insertion Loss
  • Compact Size

Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: PIPS

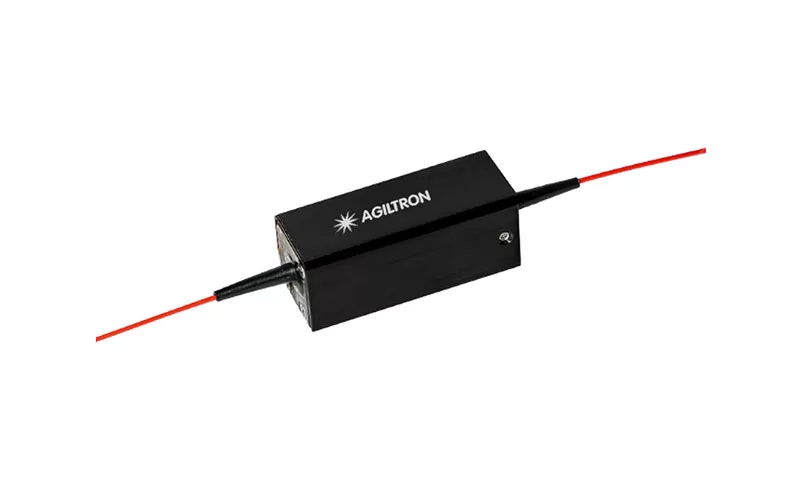

The Piezoelectric Fiber Phase Shifter (PIPS) uses a pair of aligned fiber collimators; applying voltage to a piezoelectric actuator varies their separation to produce a controlled optical phase (or time) delay. It offers low insertion loss, excellent polarization and mode-field preservation, compatibility with common fiber types (SM, PM, LMA), high-power handling, and a wide phase-shift range. We offer a compact driver to mount the device, providing 0–5 V control with modulation up to 1 kHz; control is via an SMA input and power is 12 V DC. Designed for fast, continuous operation, the device achieves large phase excursions near mechanical resonance, reducing drive power for applications requiring strong phase modulation. Each unit is rigorously tested and calibrated, delivering a robust, cost-effective solution for precision fiber phase shifting.

5% discount > 5, 10% discount > 50, 20% discount > 100

15 π Single-Mode Fiber Selection Without Connector/Driver

Fiber Type SM400
 SM450 SM600 780HP SM980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 980nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3dB <1.3dB <1.3dB <1 dB <1dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟣,𝟣𝟣𝟪 $𝟣,𝟢𝟤𝟣 $𝟫𝟤𝟦 $𝟫𝟤𝟦 $𝟫𝟤𝟦 $𝟪𝟥𝟤 $𝟩𝟦𝟢 $𝟣,𝟢𝟪𝟪
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

25 π Single-Mode Fiber Selection Without Connector/Driver

Fiber Type SM400
 SM450 SM600 780HP SM980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 980nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3dB <1.3dB <1.3dB <1 dB <1dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟣,𝟣𝟣𝟪 $𝟣,𝟤𝟩𝟥 $𝟣,𝟣𝟧𝟣 $𝟣,𝟣𝟧𝟣 $𝟣,𝟣𝟧𝟣 $𝟣,𝟢𝟦𝟤 $𝟫𝟤𝟦 $𝟣,𝟥𝟨𝟣
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

50 π Single-Mode Fiber Selection Without Connector/Driver

Fiber Type SM400
 SM450 SM600 780HP SM980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 980nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3dB <1.3dB <1.3dB <1 dB <1dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟣,𝟦𝟧𝟥 $𝟣,𝟨𝟧𝟧 $𝟣,𝟦𝟫𝟨 $𝟣,𝟦𝟫𝟨 $𝟣,𝟦𝟫𝟨 $𝟣,𝟥𝟧𝟧 $𝟣,𝟤𝟢𝟣 $𝟣,𝟩𝟨𝟫
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

15 π Polarization Maintaining Fiber Selection Without Connector/Driver

Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟣,𝟪𝟪𝟤 $𝟣,𝟨𝟪𝟩 $𝟣,𝟥𝟢𝟪 $𝟣,𝟤𝟨𝟩 $𝟣,𝟣𝟨𝟩 $𝟣,𝟢𝟨𝟩 $𝟫𝟫𝟧 $𝟣,𝟨𝟢𝟩
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

25 π Polarization Maintaining Fiber Selection Without Connector/Driver

Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟣,𝟫𝟥𝟦 $𝟣,𝟪𝟥𝟫 $𝟣,𝟪𝟨𝟢 $𝟣,𝟪𝟣𝟫 $𝟣,𝟪𝟣𝟫 $𝟣,𝟦𝟣𝟫 $𝟣,𝟤𝟨𝟨 $𝟣,𝟫𝟫𝟣
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

50 π Polarization Maintaining Fiber Selection Without Connector/Driver

Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟤,𝟧𝟫𝟦 $𝟣,𝟫𝟩𝟣 $𝟣,𝟫𝟨𝟪 $𝟣,𝟫𝟣𝟧 $𝟣,𝟫𝟣𝟧 $𝟣,𝟫𝟣𝟧 $𝟣,𝟦𝟧𝟨 $𝟤,𝟧𝟪𝟪
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

Multi-Mode Fiber Selection

Fiber Type MM 50/125
 MM 62.5/125 MM 105/125 STP 50/125
Wavelength Range* 350 – 2500nm 350 – 2500nm 350 – 2500nm 700 – 1000nm
Insertion Loss ≤0.3dB ≤0.3dB ≤0.5dB ≤0.5dB
Isolation 50dB 50dB 50dB 50dB
Datasheet
Price $𝟧𝟦𝟨 $𝟧𝟨𝟢 $𝟧𝟩𝟧 $𝟪𝟣𝟧
Buy buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property

15 π Polarization Maintaining Fiber Selection Without Connector/Driver

Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength (nm) 400 – 600 460 – 700 620 – 750 760 – 850 830 – 930 910 – 1100 1000 – 1650 1200 – 2200nm
Insertion Loss (dB) ~0.3 ~0.3 ~0.3 ~0.3 ~0.3 ~0.3 ~0.3 ~0.3
Polarization Extinction Ratio (dB) >20 >28 >20 >28 >20 >28 >20 >28 >20 >28 >20 >28 >20 >28 >20 >28
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector Non Non Non Non Non Non Non Non
Datasheet
Price $𝟣,𝟧𝟨𝟧 $𝟤,𝟢𝟣𝟤  $𝟣,𝟦𝟤𝟫 $𝟣,𝟪𝟥𝟪 $𝟣,𝟤𝟫𝟦 $𝟣,𝟨𝟨𝟥  $𝟣,𝟤𝟫𝟦 $𝟣,𝟨𝟨𝟥  $𝟣,𝟤𝟫𝟦 $𝟣,𝟨𝟨𝟥  $𝟣,𝟤𝟫𝟦 $𝟣,𝟨𝟨𝟥  $𝟣,𝟢𝟥𝟨 $𝟣,𝟥𝟥𝟤 $𝟣,𝟧𝟤𝟥 $𝟣,𝟫𝟧𝟪
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now



Spec Sheet (PDF)
