MEMS 1xN Fiber Optical Switch 1310-1650 nm – 2D

MEMS 1xN Fiber Optical Switch 1310-1650 nm – 2D
Features:
  • Up to 380 Channels
  • Crosstalk up to 70dB
  • 780 to 2100nm
  • SM, PM
  • Compact
  • Low Cost
  • Bidirectional
  • High Reliability
  • 5 Years Warranty

Fiber Type 780HP PM980 50/125 Hi1060 SM28 50/125 PM1310 PM1550
Wavelength (nm) 750 – 950 850 – 1100 830 – 1380 960 – 1080 1250 – 1650 1250 – 1650 1200 – 1550 1250 – 1650
Extinction (dB) 55 55 40 55 55 40 55 55
Connector FC/APC FC/APC FC/PC FC/APC FC/APC FC/PC FC/APC FC/APC
Datasheet
1×4 $𝟣,𝟤𝟪𝟣 $𝟣,𝟤𝟪𝟣 $𝟦𝟪𝟢 $𝟧𝟪𝟪 $𝟦𝟦𝟣 $𝟦𝟪𝟢 $𝟣,𝟣𝟥𝟧 $𝟣,𝟣𝟥𝟧
1×6 $𝟣,𝟦𝟪𝟣 $𝟣,𝟦𝟪𝟣 $𝟧𝟥𝟦 $𝟩𝟩𝟦 $𝟦𝟪𝟢 $𝟧𝟥𝟦 $𝟣,𝟥𝟤𝟣 $𝟣,𝟥𝟤𝟣
1×8 $𝟣,𝟩𝟢𝟪 $𝟣,𝟩𝟢𝟪 $𝟧𝟪𝟪 $𝟫𝟨𝟣 $𝟧𝟤𝟣 $𝟧𝟪𝟪 $𝟣,𝟧𝟤𝟣 $𝟣,𝟧𝟤𝟣
1×12 $𝟥,𝟧𝟩𝟧 $𝟥,𝟧𝟩𝟧 $𝟨𝟨𝟩 $𝟣,𝟣𝟩𝟧 $𝟨𝟢𝟣 $𝟨𝟨𝟩 $𝟥,𝟤𝟢𝟤 $𝟥,𝟤𝟢𝟤
1×16 $𝟦,𝟣𝟥𝟧 $𝟦,𝟣𝟥𝟧 $𝟩𝟨𝟣 $𝟣,𝟥𝟨𝟣 $𝟨𝟦𝟣 $𝟩𝟨𝟣 $𝟥,𝟨𝟨𝟫 $𝟥,𝟨𝟨𝟫
1×24 $𝟪,𝟢𝟢𝟥 $𝟪,𝟢𝟢𝟥 $𝟫𝟦𝟪 $𝟣,𝟩𝟢𝟪 $𝟪𝟪𝟣 $𝟫𝟦𝟪 $𝟩,𝟣𝟣𝟪 $𝟩,𝟣𝟣𝟪
1×32 $𝟣𝟤,𝟤𝟩𝟤 $𝟣𝟤,𝟤𝟩𝟤 $𝟣,𝟣𝟩𝟧 $𝟤,𝟤𝟨𝟪 $𝟣,𝟢𝟪𝟤 $𝟣,𝟣𝟩𝟧 $𝟣𝟢,𝟪𝟧𝟤 $𝟣𝟢,𝟪𝟧𝟤
1×48 $𝟣𝟤,𝟪𝟢𝟧 $𝟣𝟤,𝟪𝟢𝟧 $𝟣,𝟩𝟢𝟪 $𝟤,𝟪𝟢𝟣 $𝟣,𝟧𝟦𝟪 $𝟣,𝟩𝟢𝟪 $𝟣𝟣,𝟥𝟥𝟪 $𝟣𝟣,𝟥𝟥𝟪
1×64 $𝟣𝟥,𝟨𝟢𝟧 $𝟣𝟥,𝟨𝟢𝟧 $𝟤,𝟣𝟥𝟦 $𝟥,𝟤𝟢𝟤 $𝟣,𝟨𝟪𝟣 $𝟤,𝟣𝟥𝟦 $𝟣𝟤,𝟢𝟢𝟧 $𝟣𝟤,𝟢𝟢𝟧
1×96 $𝟣𝟫,𝟩𝟦𝟢 $𝟣𝟫,𝟩𝟦𝟢 $𝟥,𝟥𝟥𝟧 $𝟦,𝟪𝟢𝟤 $𝟥,𝟤𝟢𝟤 $𝟥,𝟥𝟥𝟧 $𝟣𝟩,𝟥𝟦𝟢 $𝟣𝟩,𝟥𝟦𝟢
1×128 $𝟤𝟨,𝟣𝟦𝟥 $𝟤𝟨,𝟣𝟦𝟥 $𝟦,𝟣𝟥𝟧 $𝟨,𝟩𝟥𝟩 $𝟥,𝟩𝟥𝟧 $𝟦,𝟣𝟥𝟧 $𝟤𝟤,𝟫𝟦𝟤 $𝟤𝟤,𝟫𝟦𝟤
1×192 $𝟥𝟣,𝟦𝟩𝟪 $𝟥𝟣,𝟦𝟩𝟪 $𝟨,𝟨𝟨𝟫 $𝟫,𝟪𝟩𝟣 $𝟨,𝟦𝟢𝟤 $𝟨,𝟨𝟨𝟫 $𝟤𝟩,𝟦𝟩𝟨 $𝟤𝟩,𝟦𝟩𝟨
1×256
 $𝟥𝟨,𝟪𝟣𝟥 $𝟥𝟨,𝟪𝟣𝟥 $𝟪,𝟦𝟢𝟥 $𝟣𝟣,𝟩𝟥𝟪 $𝟩,𝟦𝟨𝟫 $𝟪,𝟦𝟢𝟥 $𝟥𝟤,𝟣𝟦𝟧 $𝟥𝟤,𝟣𝟦𝟧
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: MSWH

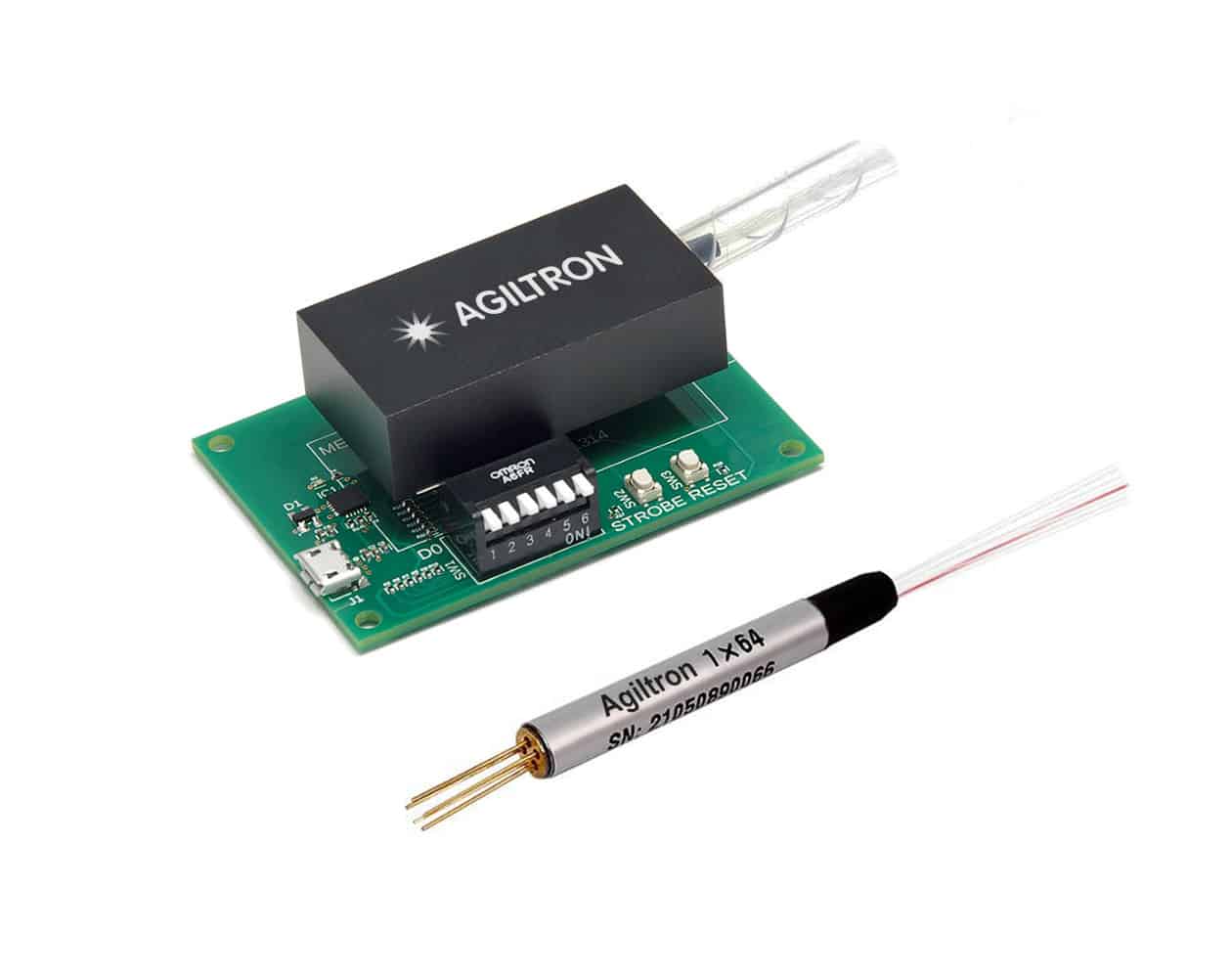

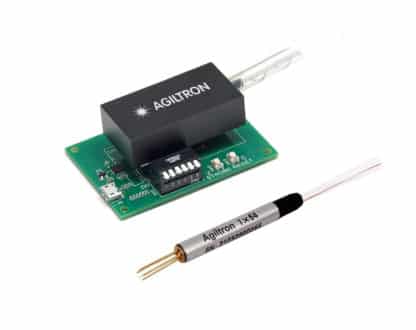

The MEMS 1xN Fiber Optical Switch employs a gold-coated reflecting silicon mirror to direct light from the input fiber to the selected output fiber with minimal path length difference between states. Its design uses bending single-crystal arms that do not fatigue or wear out, ensuring exceptional reliability and long operational life. The electrostatic actuator consumes little energy. The switch supports bidirectional operation and is available in single-mode, polarization-maintaining, and multimode fiber types. For Nx1 use, the total combined input power must remain within the specified maximum rating. Configurations include bare device, standalone module with TTL driver, or a plug-and-play PCB-mounted module featuring USB or RS-232 interfaces, GUI control software, a 5 VDC wall-pluggable supply, and computer interface cable. A vibration-insensitive version is available for deployment in airframes and vehicle environments. The MSWH is widely used in production testing, telecommunications, data centers, and laboratory applications.

Spec Sheet (PDF)
