SKU: UVFL

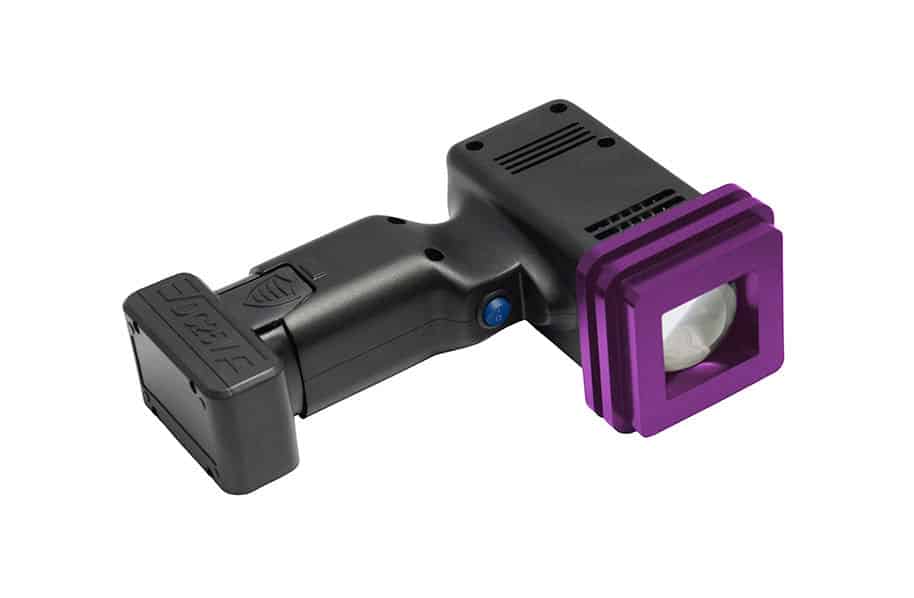

The UVFL is a battery-powered, handheld, UV lamp that delivers high-intensity 1 W/cm² irradiation at a 2-inch distance over a 3×3 mm area using a 40 W UV LED. It is the most powerful battery-powered handheld UV lamp on the market. The UVFL features a specially designed UV collimating lens that maximizes intensity and homogeneity. With an internal cooling fan, It has a long operation time of up to 6 hours on its high-capacity 18 Ah 25 V rechargeable battery. The battery is exchangeable so that one can purchase two batteries to continue the work while another battery is charging. The design leverages multi-year military UV gear developments, resulting in a ruggedized manufacturing tool for the mass market. The UVFL UV lamp is ideal for fast and deep epoxy curing, with continuous operation on a single battery charge, homogeneous illumination, lightweight construction, and ease of use. The lamp can be switched on and off with a finger-press button switch. An optional pluggable power supply and controller allow for hands-free operation with a foot switch pedal. The controller features a timer with settings from 0.01 to 10 hours, and the illumination power is adjustable from 10% to 99%. We offer three wavelengths — 365 nm, 405 nm, and 440 nm — optimized for specific UV epoxy and paint curing applications. Additionally, we produce optical power meters that fit the head size to accurately measure and calibrate the power level.
